| Motherboard | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Chipset | AMD X570 Chipset | |
| Form Factor | ATX | |
| PCI | - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) - 3x PCIe 3.0 x1 slots1 - PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
|
| M.2 Socket | - Lightning Gen4 x4 M.2 with M.2 Shield Frozr, - 2 Slot 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices |
|
| Type | DDR4 | |
| Slots | - MEMORY CHANNEL: Dual - DIMM SLOTS: 4 - 4x DDR4 memory slots, support up to 128GB |
|
| Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE | |
| Maximum Memory | Maximum shared memory of 2048 MB | |
| Graphics | - 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1 - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors |
|
| Maximum Shared Memory | Maximum shared memory of 2048 MB | |
| Display Port | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz | |
| USB | AMD X570 Chipset: - 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector - 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor: - 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port | 1x Realtek 8111H Gigabit LAN Controller | |
| Supported Storage | AMD X570 Chipset: - 4x SATA 6Gb/s ports(SATA3-SATA6) - 2x M.2 slots (Key M) M2_1 slot (from AMD Processor): - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset): - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061: - 2x SATA 6Gb/s ports (SATA1, SATA2) |
|
| Audio | 7.1-Channel High Definition Audio | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs |
|
| Trusted Platform Module | 1x TPM module connector | |
| Warranty | 03 years warranty | |

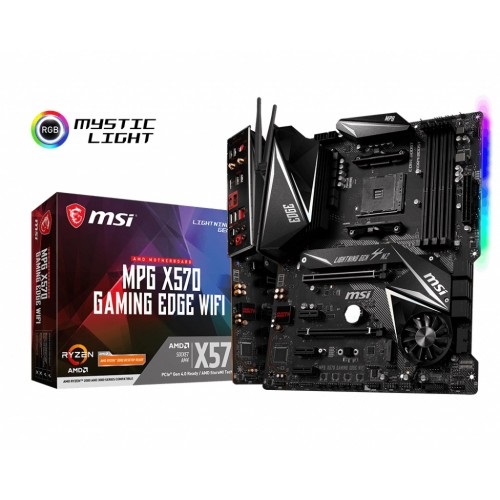

MSI MPG X570 Gaming Edge Wi-Fi AM4 AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors for Socket AM4 with DDR4 Memory, up to 4400+(OC) MHz. This MSI motherboard designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers. Here the Set Core Power Free are Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost. The MSI motherboard has MYSTIC LIGHT EXTENSION that supports both RGB and RAINBOW LED strip with 16.8 million colors / 29 effects controlled in one click. This motherboard is built with AUDIO BOOST 4 with NAHIMIC 3 that reward your ears with studio grade sound quality for the most immersive gaming experience. Dragon Center is a brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.
