| Motherboard | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| Chipset | Intel B460 Chipset | |
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) |
|
| PCI | 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH) |
|
| M.2 Socket | 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices |
|
| Type | Dual Channel Memory Architecture | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 Supports DDR4-2666 Memory (Max.) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
|
| Display Port | 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz | |

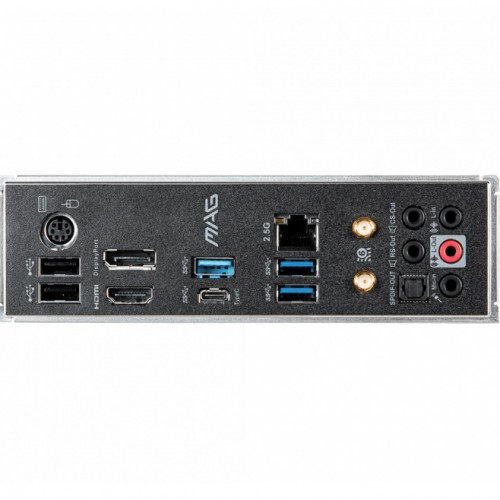

| USB | Intel B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
|
| LAN Port | 1x Realtek RTL8125B 2.5G LAN Controller WIFI & BLUETOOTH: Intel AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
|
| Supported Storage | Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core™ processors |
|
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector |
|
| Trusted Platform Module | 1x TPM module connector | |
| Warranty | 03 Years | |
