| Motherboard | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| Chipset | Intel H410 | |
| Form Factor | Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) | |
| PCI | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 1x M.2 slot with E key for WiFi module only |
|
| Type | Dual Channel Memory Architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |

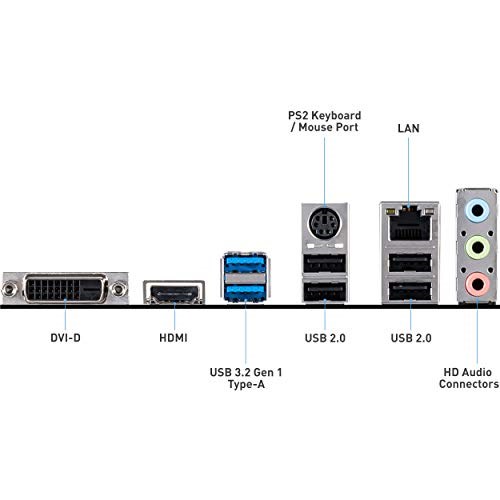

| Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
|
| Maximum Shared Memory | 1GB | |
| USB | Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
|
| LAN Port | 1x Intel I219V Gigabit LAN controller | |
| Supported Storage | Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
|
| Trusted Platform Module | 1 x TPM module connector | |
| Warranty | 03 Years | |
