| Motherboard | ||
| Supported CPU | Supports 6th Gen Intel Core / Pentium / Celeron processors | |
| Chipset | Intel H110 Chipset | |
| Form Factor | M-ATX | |
| PCI | PCI-E X16 1 PCI-E GEN Gen3 PCI-E X1 2 |
|
| Type | Dual channel memory architecture | |
| Slots | 2 DIMM SLOTS | |
| Supported Memory | DDR4-2133 ; 2133 MHz Memory | |
| Maximum Memory | 32GB | |
| Graphics | Direct-X DX12; VGA Armor: Reinforced Armor Slot | |
| Display Port | VGA 1 DVI 1 |
|
| USB | 4 x USB 3.1 Gen1; 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) | |
| LAN Port | 1 x Realtek RTL8111H Gigabit LAN controller | |
| Audio | Realtek ALC887 Codec, 7.1-Channel High Definition Audio | |
| Internal I/O Ports | Audio ports (Rear): 3, USB 2.0 ports (Rear): 2; USB 2.0 ports (Front): 4; USB 3.1 ports (Rear) 2(Gen1) | |
| Special Features | Military Class 4, Guard-Pro, EZ Debug LED, SBB Support | |
| Warranty | 3 Years | |

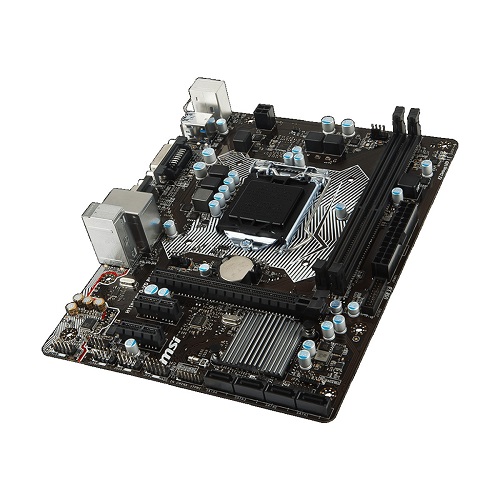

MSIH110M PRO-VD PLUS, CPU Sockets - LGA 1151, Chipset - Intel H110, Supported CPU -7th / 6th Gen Intel Core i3 / i5 / i7 / Pentium / Celeron processors, MemoryType - DDR4, Memory MHz - 2133MHz, Memory Channel - Dual, Memory Slot - 2,Memory Max. - 32GB, Optane Memory Support - No, PCI Express Slot - 1 x PCIExpress 3.0 x16, 2 x PCI Express 2.0 x1, Storage Interface - 6Gb/s, LAN Chipset- Realtek RTL8111H, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - RealtekALC887 Codec, Audio Channel - 7.1-Channel, USB Port - 2 x USB3.1 (Gen1), 2 xUSB3.1 (Gen1), 4 x USB2.0, 2 x USB2.0, VGA Port - 1, DVI Port - 1, SATA Port -4 x SATA III, DirectX Support - DX12, Form Factor - M-ATX, Warranty - 3 Years.
