| Motherboard | ||
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD B450 Chipset |
|
| Form Factor | ATX Form Factor |
|
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 4 x PCIe 2.0 x1 slots1 |
|
| M.2 Socket | - 1 x M.2 slot (Key M) |
|
| Type | DDR4 |
|
| Slots | 4 x DDR4 memory slots, support up to 64GB |
|
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
|
| Maximum Memory | MAX MEMORY (GB): 64 |
|
| Graphics | - 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1 - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1 - Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors |
|
| Maximum Shared Memory | - Maximum shared memory of 2048 MB |
|
| Display Port | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz |
|
| USB | AMD B450 Chipset: - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port | - 1 x Realtek 8111H Gigabit LAN controller |
|
| Supported Storage | AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices AMD B450 Chipset: 4 x SATA 6Gb/s ports |
|
| Audio | -7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
|
| Trusted Platform Module | 1 x TPM module connector |
|
| Special Features | - Support for Windows 10 64-bit - Support for Windows 7 64-bit - To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
|
| Warranty | 03 years warranty |
|

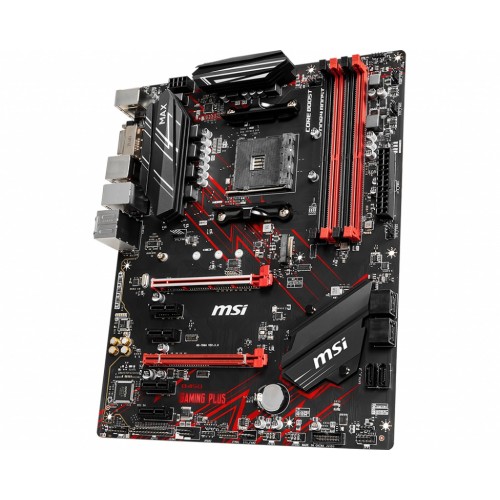

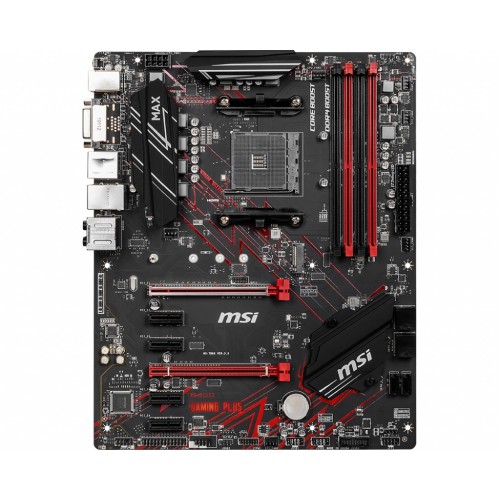

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and DDR4 Memory, up to 4133(OC) MHz. You will get Lightning Fast Game experience with TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology. Here is added Core Boost with premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability with Audio Boost that reward your ears with studio grade sound quality for the most immersive gaming experience. And also you simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
