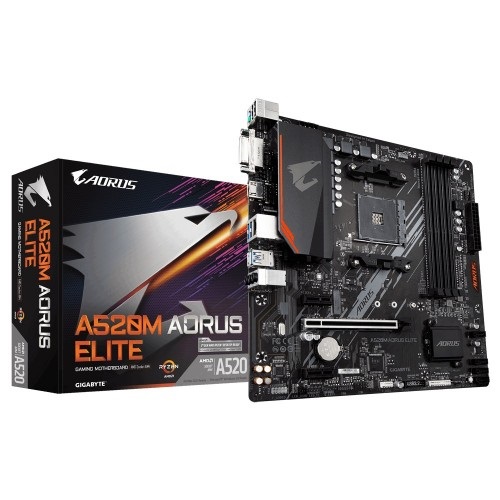

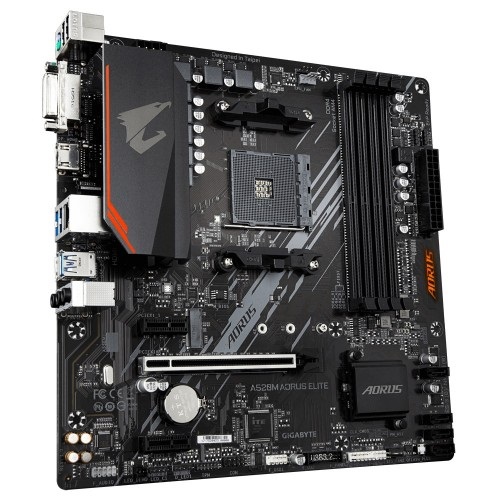

| Motherboard | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Maximum Shared Memory | 16 GB | |
| Display Port | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
|
| USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| Trusted Platform Module | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | 03 years | |
The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor-sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design. GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
